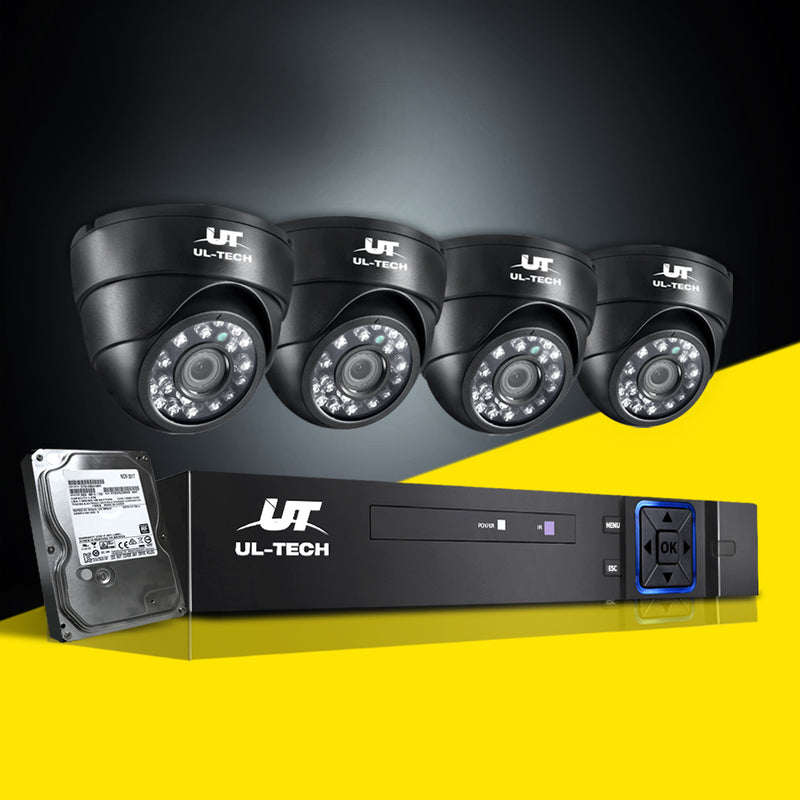

UL-tech 4CH DVR CCTV Security System 4 Cameras 1TB Hard Drive

Monitor your home 24/7 with crisp 1080P HD footage and infrared night vision, so you can identify intruders, licence plates and faces with clarity. The 1TB hard drive stores weeks of recordings, whilst remote smartphone access and instant motion alerts keep you informed whether you're home or away.

• 4-channel DVR with 4 x 1080P HD cameras
• 1TB hard drive for extended recording storage
• Infrared night vision up to 20 metres
• Motion detection across 192 zones with customisable sensitivity
• Remote access via free mobile app on smartphone or tablet
• Instant email alerts when motion is detected
• Video outputs via VGA and HDMI
• P2P technology for easy internet connectivity
• Battery backup protection against power outages

Specifications:
Camera:
Image sensor: 1/2.8 inch V20+ SC135 sensor
Video resolution: 1080P (1920*1080)
Signal system: PAL/NTSC
Minimum illumination: Olux (When IR ON)
Video output: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDs: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/20m
Noise-signal ration: ≤41db
Operating power: DC12V±10%
Consumption: ＜5W
Video:
Codec: H.264
Monitor quality: VGA, HDMI: HD
Preview ability: 4*1080N
Encode ability: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog: 4*1080N
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing
Local playback: 4ch (local input mode)
Seatrch mode: Search by time, calender, event, channel
External inferface:
Video input: 4ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: O/O
Alarm I/O: O/O
Network interface: RJ45 10M/100M self-adaptation
PTZ control: Support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup:
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A
Assembly Required: Yes
Number of Packages: 2



Package Content
4 x UL-tech 1080P Camera
1 x 1080P 4CH DVR
1 x 1TB Hard Drive
4 x 18.3m (60ft) 2-in-1 BNC Power Cable
1 x 1-4 Splitter Cable
2 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
