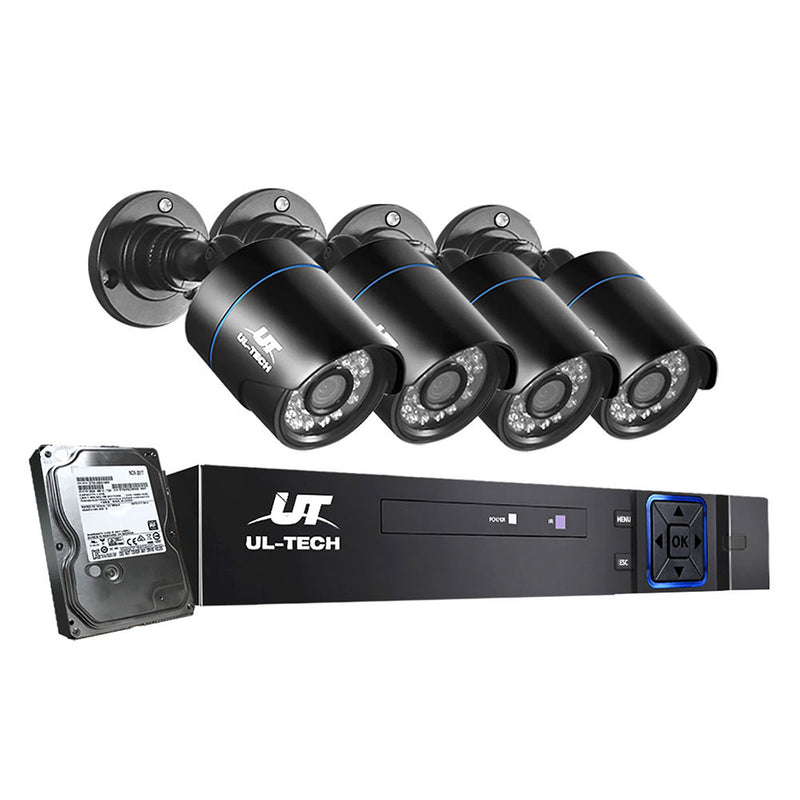

UL-tech 4CH CCTV Security System 4 Cameras 1TB DVR

Keep your home and property under constant watch with four 1080P cameras that capture clear details day and night, letting you identify faces and number plates when it matters. The 1TB hard drive stores up to two years of footage, and you can check in anytime from your smartphone to see live video or review past recordings, with instant alerts sent to your phone if motion is detected.

• Four 1080P HD cameras with 20m infrared night vision
• 1TB hard drive stores up to two years of continuous recording
• Motion detection across up to 192 areas with customisable sensitivity
• Weatherproof design for indoor and outdoor installation
• Remote smartphone access via XMEye app with live view and playback
• Instant email alerts when motion is detected
• 4-channel DVR with video output via VGA and HDMI
• Wi-Fi and P2P connectivity for easy internet setup
• Backup power protection during outages

Specifications: Video:
Codec: H.264
Monitor quality: VGA, HDMI:HD
Preview ability: 4*1080N
Encode ability: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog: 4*1080N; 4*AHD-M; 4*AHD-L
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)

Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing Local playback: 8ch (local input mode) Seatrch mode: Search by time, calender, event, channel

External inferface:
Video input: 8ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaptation
PTZ control: 1*RS485, support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)

Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner

General:
Power supply: 12V/2A

Camera: Image sensor: 1/2.8inch V20 +SC1135 sensor (V20+FH8532)
Video resolution: 1080P (1920*1080)
Signal system PAL/NTSC
Minimum illumination: Olux (When IR is on)
Video ouput: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDS: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/ 20m
Noise-signal ratio: 41db
Operating power: DC12V 10%
Consumption: <5W

Product Contents:
4 x AHD Camera
4 x 1080 4CH DVR
1 x 1TB Hard Drive
4 x 18.3m (60ft) 2-in-1 BNC Power Cable
1 x 1-4 Splitter Cable
2 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
