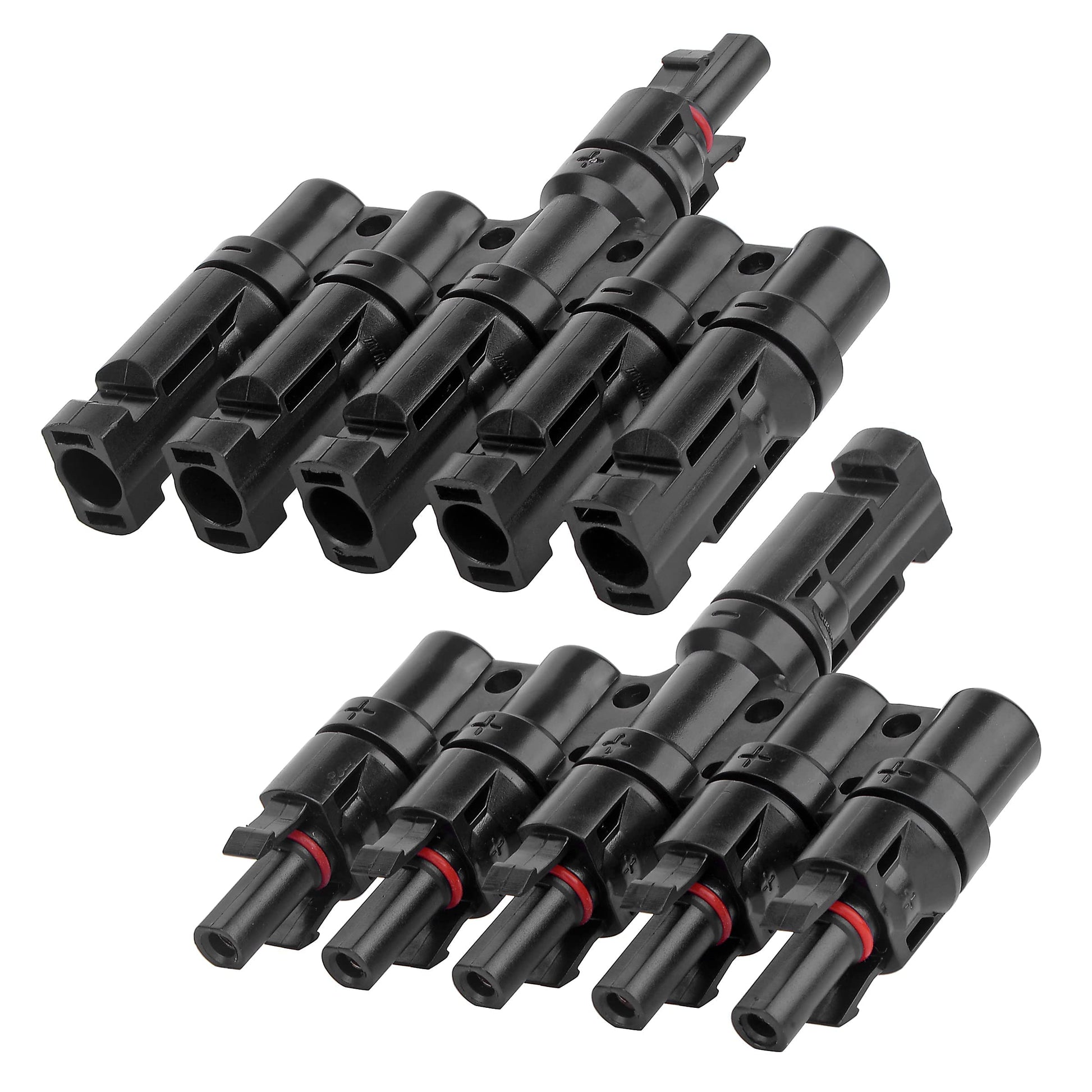

1 Pair 5 To 1 5 branch Waterproof T Branch Cable Connectors Solar PV Panel Connector Male & Female
Not satisfied? Return it within 14 days for a full product refund. Return shipping applies for change-of-mind returns. View policy
These waterproof branch connectors let you safely parallel multiple solar panels into a single circuit, expanding your PV system capacity without additional wiring complexity. The IP67-rated design seals out water and dust to keep your outdoor installation running reliably in Australian conditions, from scorching heat to coastal salt air.
- 1-to-5 branching configuration (1 male to 5 female and 1 female to 5 male connectors included)

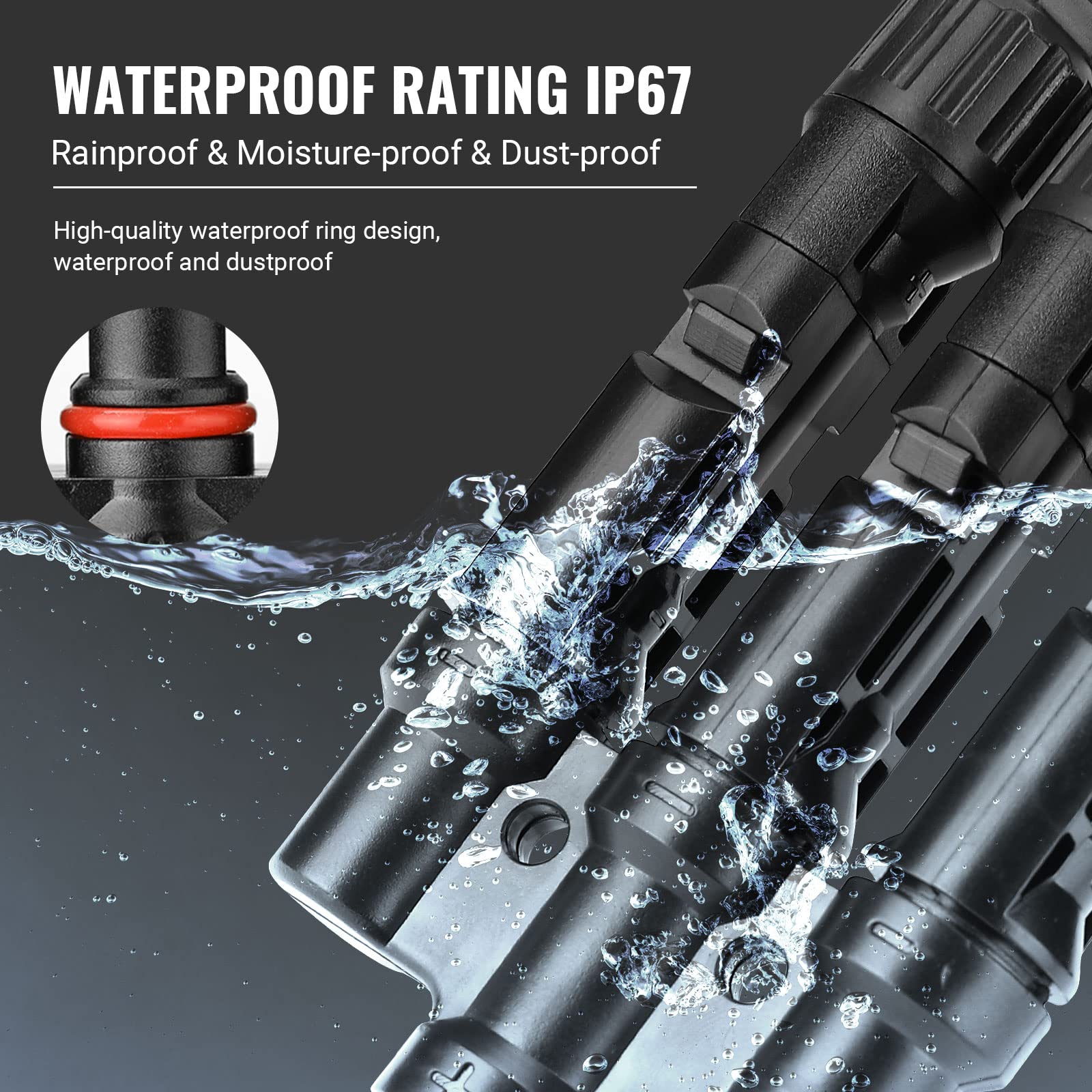

- IP67 waterproof rated with sealed male connector
- Compatible with 14AWG to 10AWG solar cable gauges

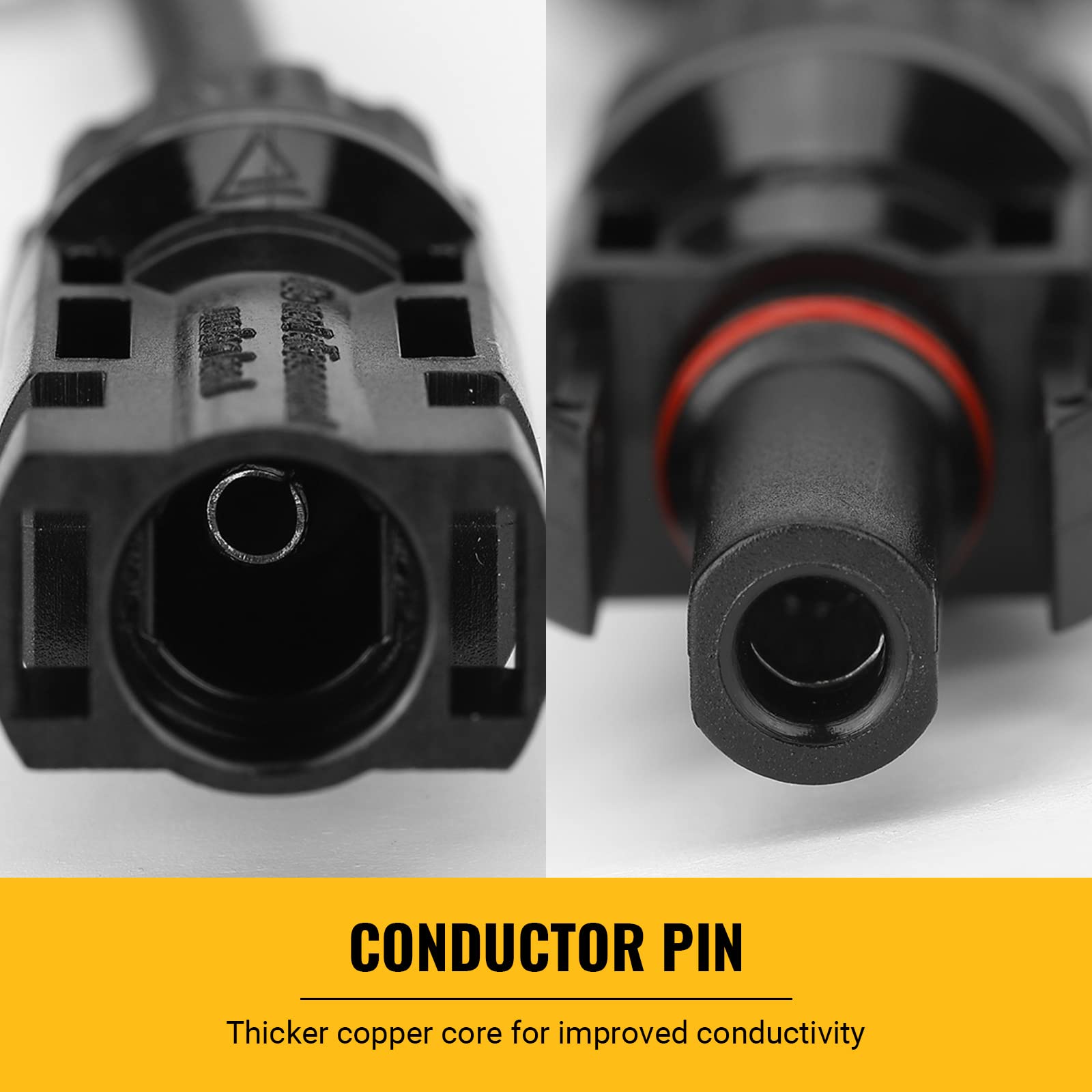

- Copper contacts with silver plating for corrosion resistance
- Operating temperature range -40°C to +90°C

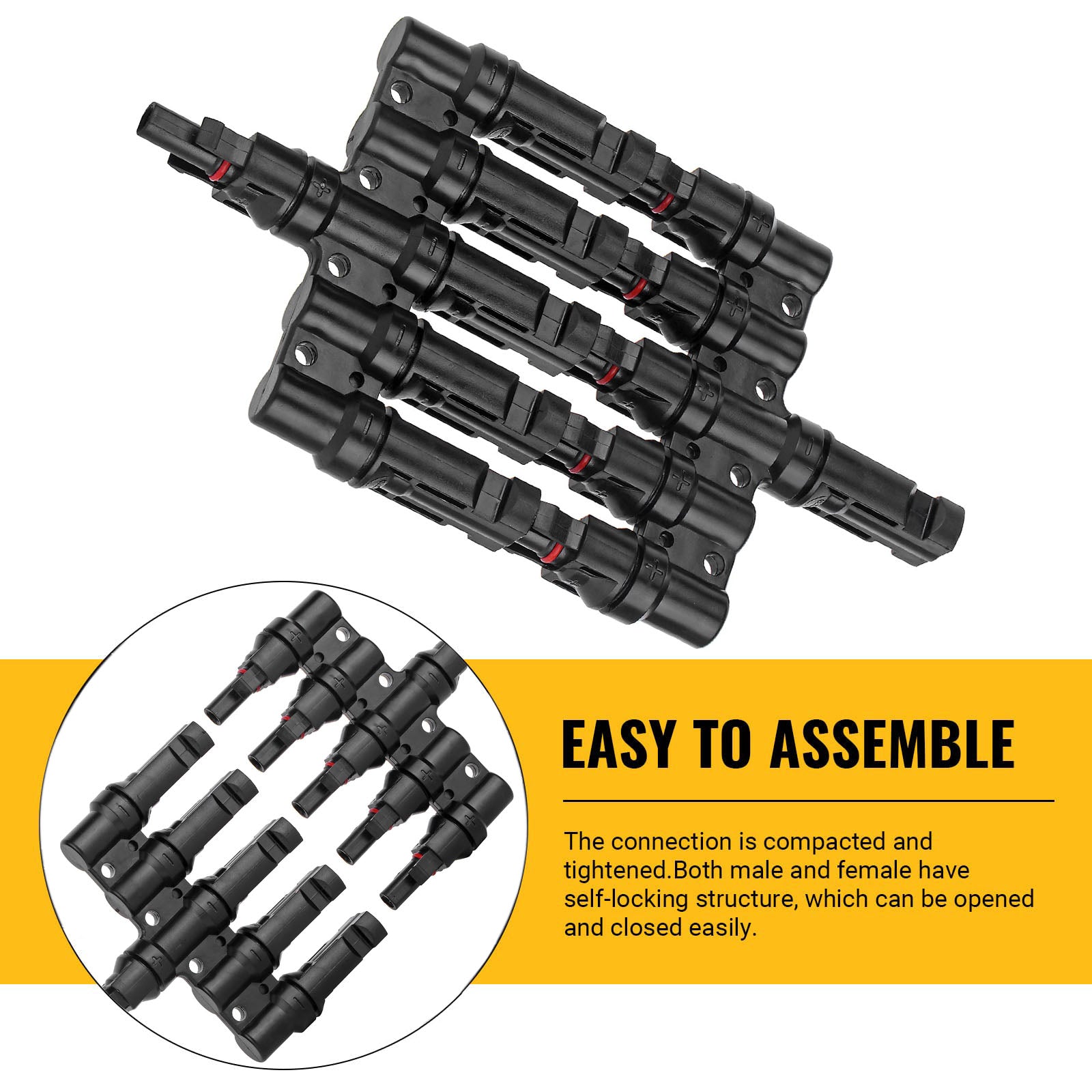

- Built-in self-locking mechanism, tool-free connection and disconnection

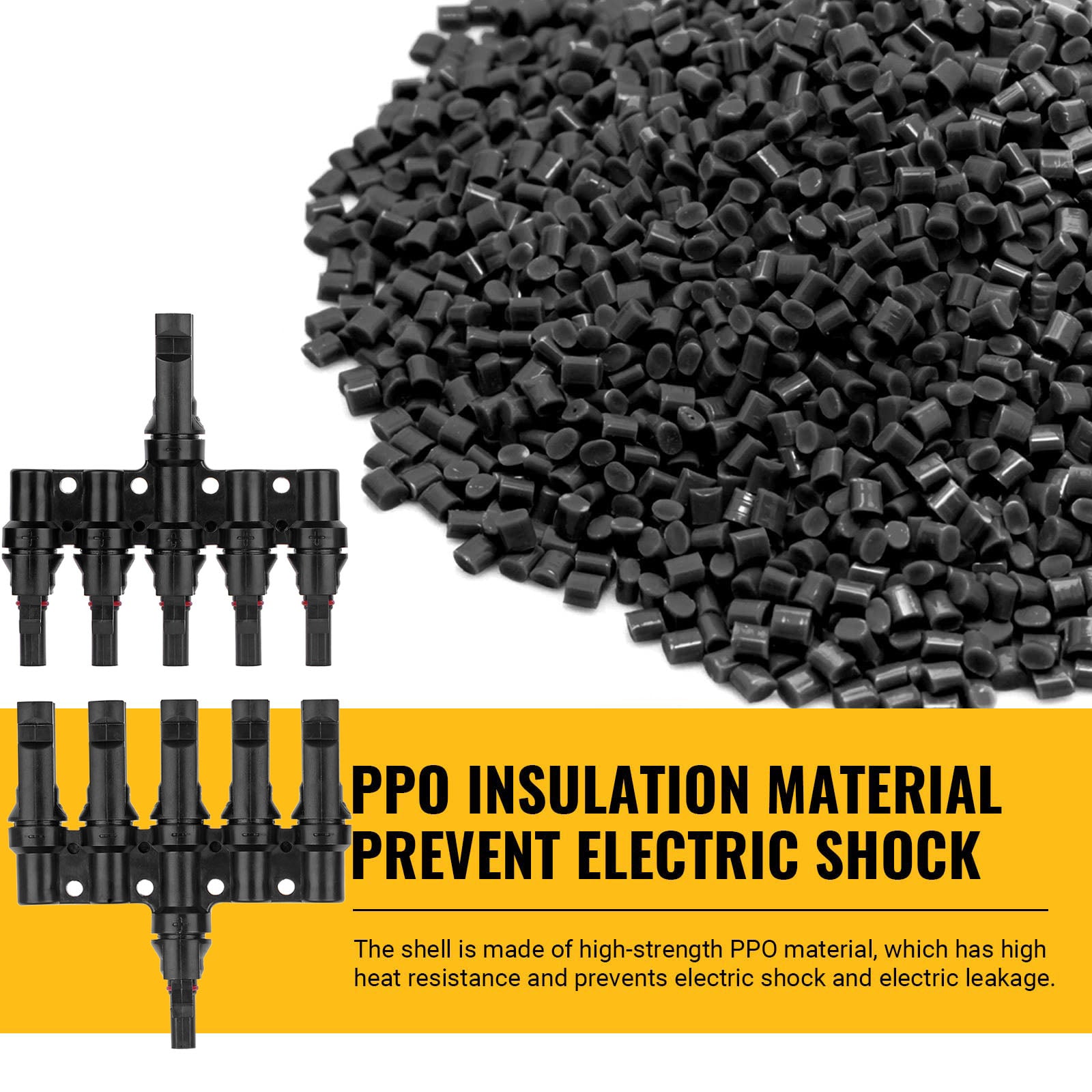

- PPO housing material for durability in outdoor environments
- CE and TUV certified

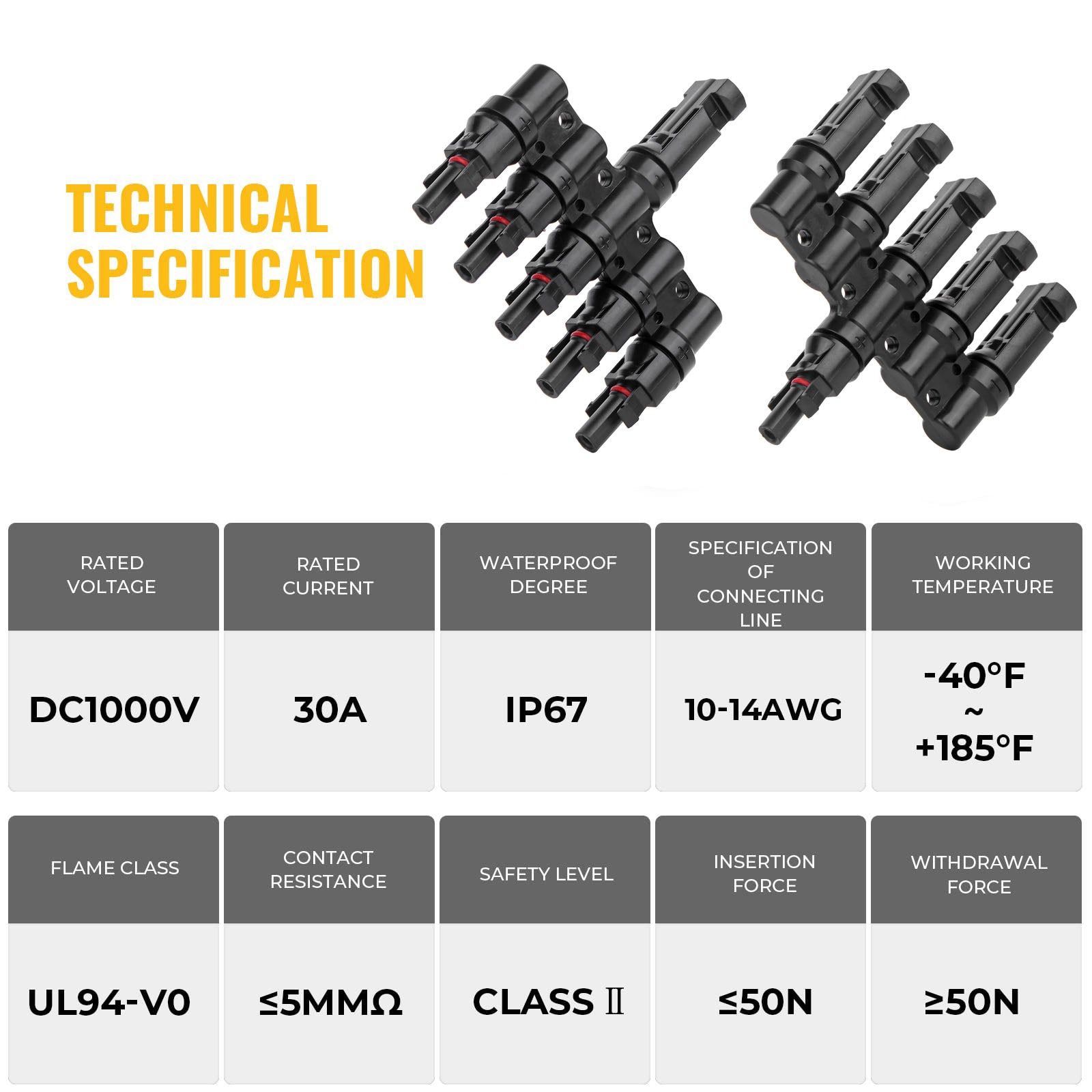

Specification:
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Contact Resistance: 1m
Protection Class: Class II
Temperature: -40 degree to +90 degree
Flame Class: UL94-V0 or UL94-5VA
Each Conntector weight: 117g
Package Includes:
1 Pair of 5 Branch Connectors (1* MMMMMF Solar Branch Connectors,1* FFFFFM Solar Branch Connectors)
